Hall Effect Magnetic

RT 0.01mm

8K Polling

Akko Ray68 HE Magnetic Keyboard

65% Compact Layout | DIY Lightbox Customization | Ultra-Precise 0.01mm Rapid Trigger

The Akko Ray68 HE redefines magnetic keyboard performance with industry-leading 0.01mm Rapid Trigger precision, 8,000Hz polling rate, and cross-compatibility with mainstream magnetic switches. Featuring a unique DIY lightbox for personalization, ARM Cortex-M4 processor for advanced calibration, and ARGB lighting at 500Hz refresh rate, this 65% layout keyboard delivers competitive gaming advantages with exceptional customization freedom.

Personalization

DIY Lightbox Customization

The Ray68 HE isn't just a high-performance keyboard—it's a platform for self-expression. The built-in DIY Lightbox lets you personalize your keyboard's aesthetic like never before. Slide in custom artwork, photos, or designs behind the transparent panel to create a truly unique setup that reflects your style.

Whether you want to display gaming logos, anime art, personal photos, or minimalist designs, the lightbox transforms your keyboard into a dynamic centerpiece on your desk. Combined with addressable RGB lighting, your custom artwork comes alive with vibrant illumination.

Ultra-Precision

Full Range RT 0.01mm

Experience industry-leading precision with ultra-accurate 0.01mm Rapid Trigger and adjustable actuation distance in 0.01mm increments. This allows you to fine-tune every key's sensitivity with surgical precision, ensuring optimal actuation for faster response times with enhanced accuracy—ideal for competitive FPS gaming where milliseconds matter.

The 0.01mm precision represents a 10x improvement over standard magnetic keyboards, giving you unprecedented control over your inputs. Fine-tune actuation points from 0.1mm to 3.4mm with 0.01mm granularity for the ultimate competitive advantage.

Akko Ray68 HE Cross-Compatible Magnetic Switches

Compatibility

Cross-Compatible with Mainstream Magnetic Switches

The Ray68 HE provides compatibility with 5 third-party magnetic switches, giving you unprecedented customization freedom. Choose the appropriate switch from the Akko Driver list and calibrate the keyboard easily after replacement. Mixing and matching different switches across keys is fully supported.

Important: High-precision switches require tuning and experimentation. The listed switches are guaranteed to perform at 0.01mm precision. Other magnetic switches may work but may be unable to reach the claimed accuracy. Mechanical switches are not supported.

Processing Power

ARM Cortex-M4 CPU

The powerful ARM Cortex-M4 processor delivers enhanced processing power with exceptional energy efficiency. It features automatic calibration across temperature ranges from -20°C to 80°C, ensuring consistent performance regardless of environmental conditions.

This advanced CPU enables faster processing of magnetic sensor data, reduced latency, extended battery life in wireless mode, and reliable operation in extreme temperature environments. The processor handles complex calculations for Rapid Trigger, DKS, and other advanced features without compromising response times.

Ultra-Fast Response

8,000Hz Polling Rate

Enjoy ultra-fast response times and smoother, more precise inputs with 8,000Hz polling rate—perfect for competitive gaming and high-performance tasks. The Ray68 Wired version supports 8,000Hz polling for all keys in wired mode.

The Ray68 Wireless (Tri-Mode) version supports 8,000Hz polling in both wired and 2.4GHz wireless modes, with 125Hz in Bluetooth mode. This represents an 8x improvement over standard 1,000Hz gaming keyboards, reducing input latency to just 0.125ms.

Advanced Feature

RT Stabilizer Mode

The RT Stabilizer mode prevents unintended inputs from slight hand tremors or micro-movements when using ultra-sensitive Rapid Trigger settings. This is especially useful when set to 0.01mm or 0.005mm precision, where even the slightest vibration could register as an input.

RT Stabilizer intelligently filters out unintentional micro-movements while preserving the lightning-fast response of Rapid Trigger, ensuring a smooth, reliable gaming experience without accidental key presses disrupting your gameplay.

Premium Lighting

ARGB at 500Hz Refresh Rate

The Ray68 HE features addressable RGB (ARGB) with individually controlled LEDs for smooth, flicker-free lighting effects. Unlike standard RGB keyboards, every LED can be programmed independently for complex, dynamic lighting patterns.

With Alpha channel integration and a 500Hz refresh rate, the ARGB system offers richer dynamic effects with smoother transitions and reduced visual fatigue—perfect for extended gaming sessions and aesthetic builds. The high refresh rate ensures lighting changes appear instantaneous and fluid.

Premium Switches

Akko AstroAim Magnetic Switch

The pre-installed Akko AstroAim magnetic switches deliver smooth linear performance optimized for both gaming and typing. Featuring LED diffusion for enhanced RGB lighting, these switches provide the perfect balance of responsiveness and consistency.

Specifications: Linear type, 3.5±0.1mm total travel, 35gf initial force, 55gf end force, 95±15Gs initial magnetic flux (1.6mm PCB), 580±40Gs bottom-out flux (1.6mm PCB). Housing: PC top, POM stem, PA66 bottom with LED diffusion for vibrant lighting.

Seven Stunning Colorways

Misty Purple & White

Misty Black Tea

Misty White

Misty Pink & White

Misty Red & White

Misty Blue & White

Misty Green & White

Each colorway features premium ABS construction with durable finish. The two-tone "Misty" designs combine translucent and solid colors for striking visual appeal.

Advanced Gaming Features

Snap Key (SOCD)

Snap Key implements Akko's SOCD (Simultaneous Opposite Cardinal Directions) solution, prioritizing the latest input for faster directional shifts. Essential for FPS games requiring rapid counter-strafing and precise movement control.

Adjustable Actuation Distance

Magnetic switches allow adjustment of every key's actuation point from 0.1mm to 3.4mm in 0.01mm increments. Set hair-trigger sensitivity for WASD movement keys, deeper actuation for ability keys, and customize each key to match your playstyle perfectly.

Rapid Trigger (RT)

Rapid Trigger eliminates actuation delay by instantly activating and deactivating keys with minimal travel. Perfect for FPS gaming where rapid directional changes and counter-strafing provide competitive advantages. Adjustable from 0.01mm to 2.00mm sensitivity.

Dynamic Keystrokes (DKS)

A single key supports four programmable actions—light press for action 1, deeper press for action 2, plus two-stage release settings. Maximize efficiency by packing multiple functions into individual keys, reducing the need for key combinations.

Toggle Key (TGL)

TGL (Toggle Key) transforms a key into a switch that can either hold a function continuously or trigger it repeatedly at high speed. Perfect for auto-run, crouch-spam, or any action requiring sustained activation without holding the key down.

Mod-Tap

Mod Tap enables dual-function keys—tap for one action, hold for another. Assign commonly used modifiers or actions to easily accessible keys, reducing finger travel and increasing efficiency during intense gaming sessions.

Feature Showcase

Tri-Mode Connectivity & 8000mAh Battery

Wireless Version: Connect via Bluetooth 5.0, multi-host 2.4GHz (with receiver), or wired USB-C with easy switching between devices. The high-capacity 8000mAh battery provides extended wireless operation—enjoy prolonged periods of uninterrupted typing, gaming, or productivity without constant recharging. 8,000Hz polling supported in wired and 2.4GHz modes, 125Hz in Bluetooth mode.

Compact 65% Layout

The Ray68 HE features a space-efficient 65% layout that retains dedicated arrow keys and essential navigation cluster while minimizing desktop footprint. Perfect for compact setups without sacrificing functionality.

Software & Customization

Technical Specifications

Layout

65% Compact
US-ANSI

Mount Structure

Tray Mount

Case Material

ABS Plastic

Plate Material

Aluminum

Connectivity (Wired)

USB-C Wired Only

Connectivity (Wireless)

Bluetooth 5.0
2.4GHz | USB-C

Battery

8000mAh (Wireless)
N/A (Wired)

Polling Rate

8,000Hz (Wired/2.4G)
125Hz (Bluetooth)

RT Precision

0.01mm - 2.00mm
Industry-Leading Accuracy

Actuation Range

0.1mm - 3.4mm
0.01mm Increments

Switches

Akko AstroAim
Magnetic Linear

Hot-Swap

Yes (Magnetic Only)
Cross-Compatible

LED

South-Facing ARGB
500Hz Refresh Rate

Keycaps

Cherry Profile
PC+ABS Material

Processor

32-bit ARM Cortex-M4
Auto-Calibration

Software

Akko Cloud & Web Driver
Full Customization

Complete Feature Set

Custom Actuation

Adjust every key from 0.1mm to 3.4mm in 0.01mm increments for personalized sensitivity tailored to your exact preferences.

Mod-Tap

Dual-function keys that tap for one action and hold for another, maximizing efficiency and reducing finger travel.

Toggle Key

Transform keys into switches that hold functions or trigger rapid repeated actions automatically.

Dynamic Keystroke

Four programmable actions per key based on press depth and release stages for maximum versatility.

Key Remapping

Fully remappable layout via Akko software—assign any function to any key without limitations.

Customizable RGB

Addressable RGB with per-key control, countless effects, and 500Hz refresh rate for smooth animations.

SOCD (Snap Key)

Intelligent handling of simultaneous opposite inputs for precise FPS movement and counter-strafing.

Rapid Trigger

Instantaneous key activation/deactivation with 0.01mm precision for lightning-fast repeated inputs.

What's Included in the Box

Wired Version:

Ray68 HE Keyboard

Akko AstroAim Magnetic Switches (Pre-Installed)

PC+ABS Cherry Profile Keycaps (Pre-Installed)

USB-C Cable

Keycap & Switch Puller Tool

Protective Dust Cover

User Manual

Wireless Version (Tri-Mode):

Ray68 HE Keyboard (8000mAh Battery)

Akko AstroAim Magnetic Switches (Pre-Installed)

PC+ABS Cherry Profile Keycaps (Pre-Installed)

USB-C Cable

2.4GHz Wireless Receiver

Keycap & Switch Puller Tool

Protective Dust Cover

User Manual

Why Choose the Akko Ray68 HE?

The Akko Ray68 HE represents the cutting edge of magnetic keyboard technology, combining industry-leading 0.01mm Rapid Trigger precision with comprehensive customization features. While standard gaming keyboards offer basic performance, the Ray68 HE delivers competitive advantages through advanced Hall effect technology, ultra-fast 8,000Hz polling, and unprecedented control over every aspect of your inputs.

What sets the Ray68 HE apart is the combination of precision and versatility. The 0.01mm Rapid Trigger granularity—10x more precise than standard magnetic keyboards—enables fine-tuning that was previously impossible. Combined with cross-compatibility for mainstream magnetic switches, you can customize not just software settings but the physical switches themselves, mixing different switch types across keys to optimize for different functions.

Beyond performance, the Ray68 HE offers unique personalization through the DIY lightbox feature, letting you transform your keyboard into a custom work of art. The ARM Cortex-M4 processor ensures reliable performance with automatic temperature calibration from -20°C to 80°C, while the addressable RGB at 500Hz refresh rate delivers smooth, flicker-free lighting that reduces eye fatigue during extended sessions.

Advanced gaming features like Snap Key (SOCD), Dynamic Keystrokes (DKS), Toggle Key (TGL), and Mod-Tap provide competitive advantages previously available only on expensive custom keyboards. Whether you're a competitive FPS player requiring instantaneous inputs, a MOBA enthusiast needing complex macro capabilities, or an enthusiast wanting maximum customization freedom, the Ray68 HE delivers professional-grade performance in a compact 65% layout at an accessible price point.

Akko - Keyboards

Akko MU02 Mountain Seclusion Mechanical Keyboard

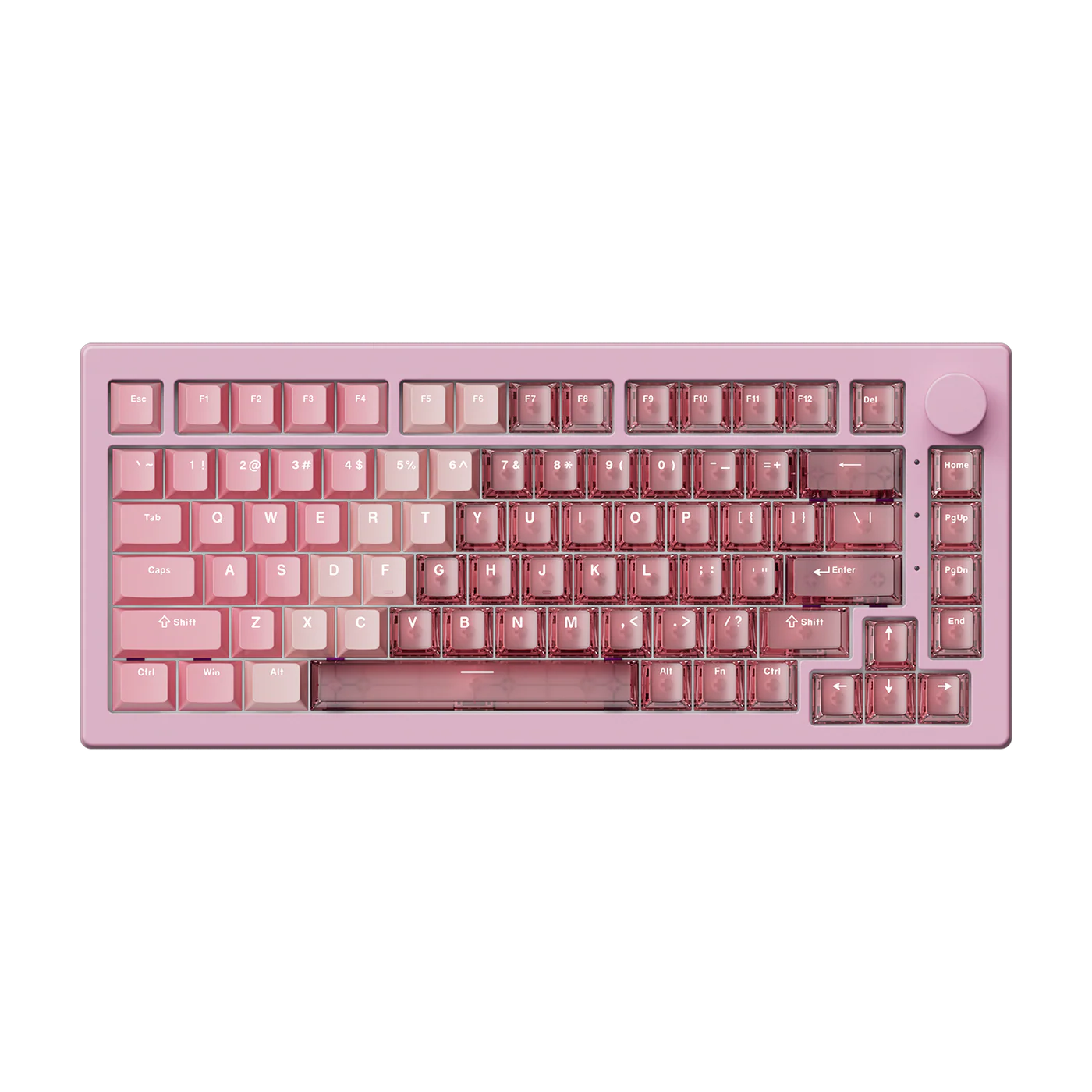

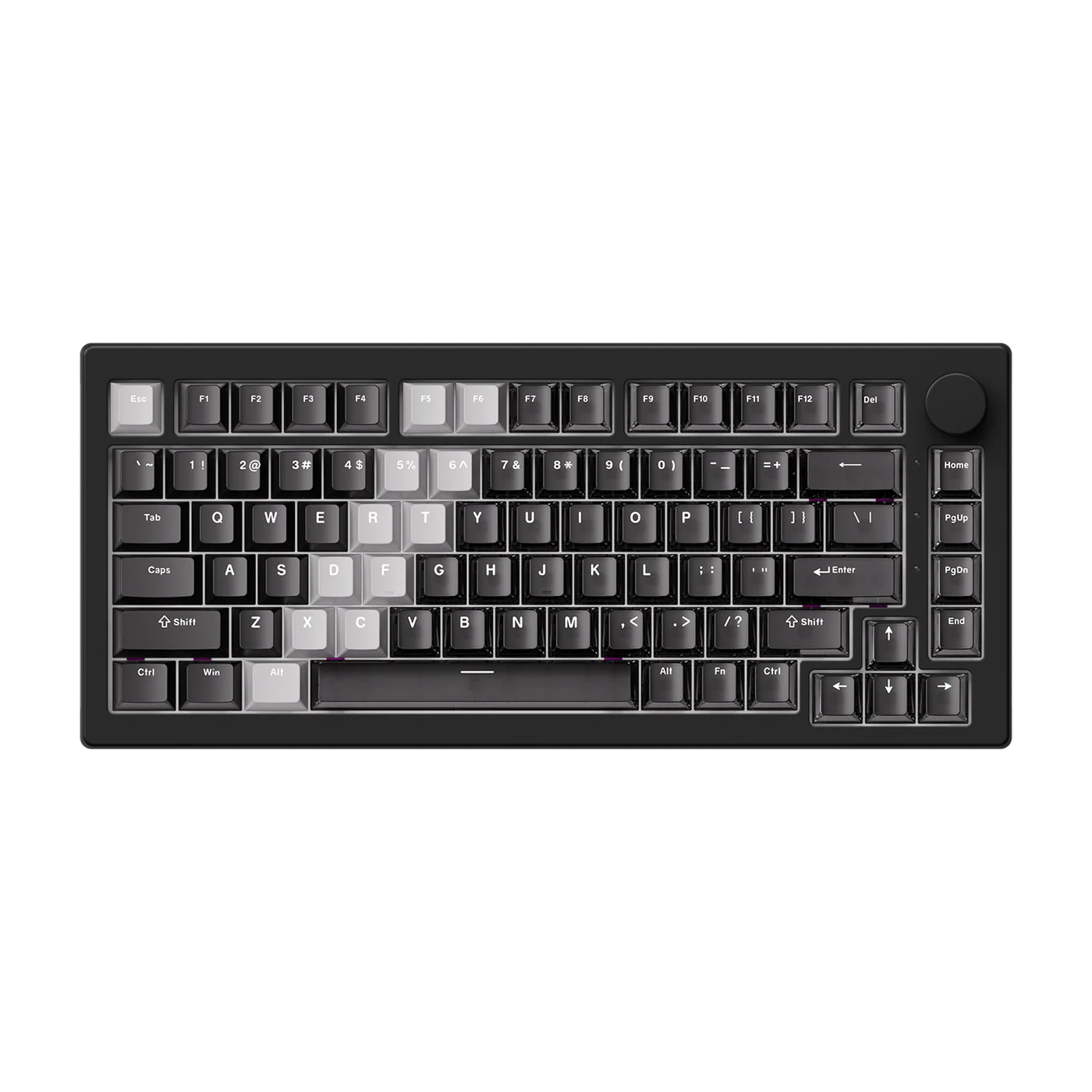

AKKO - 5075 V3 75% Wired HE Magnetic Keyboard

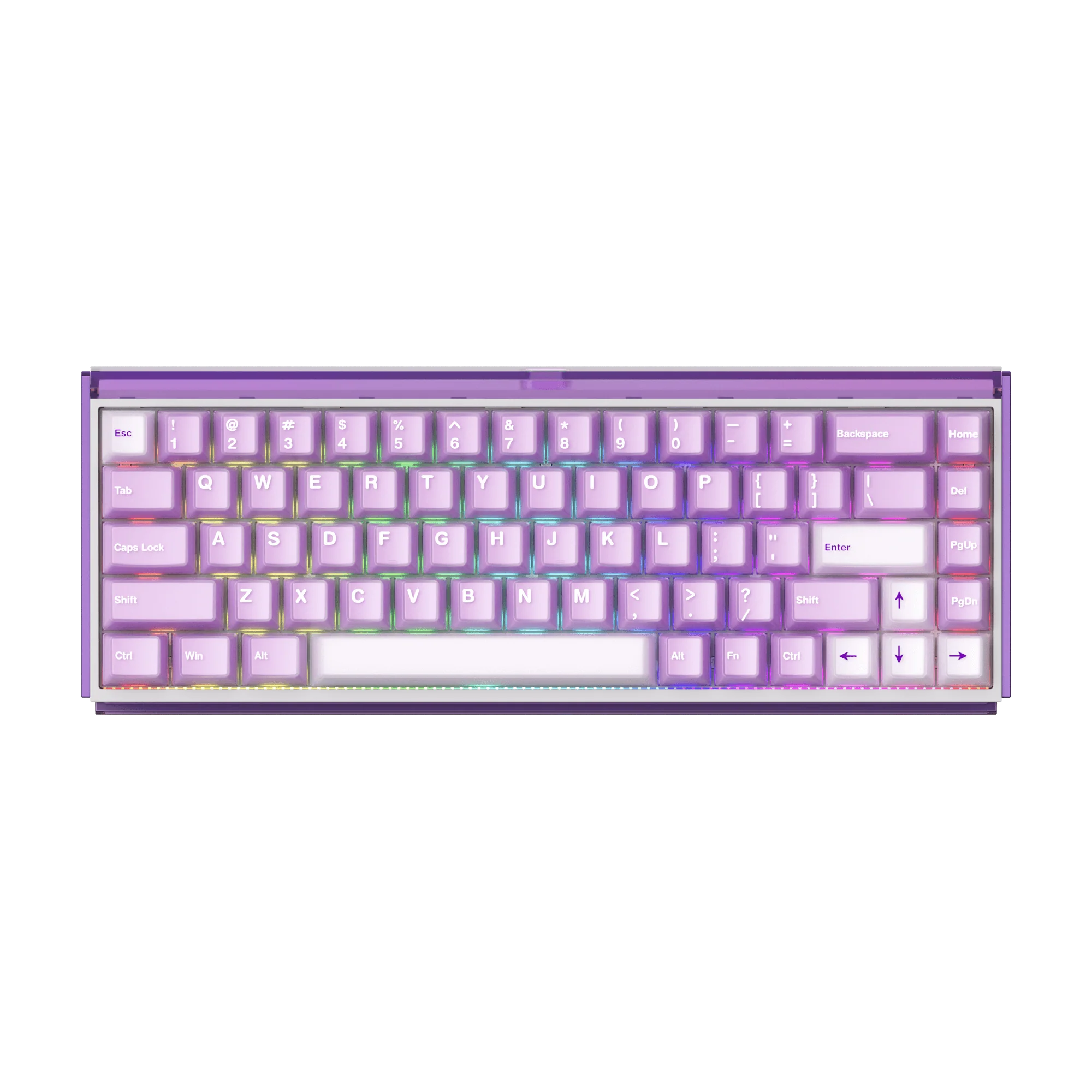

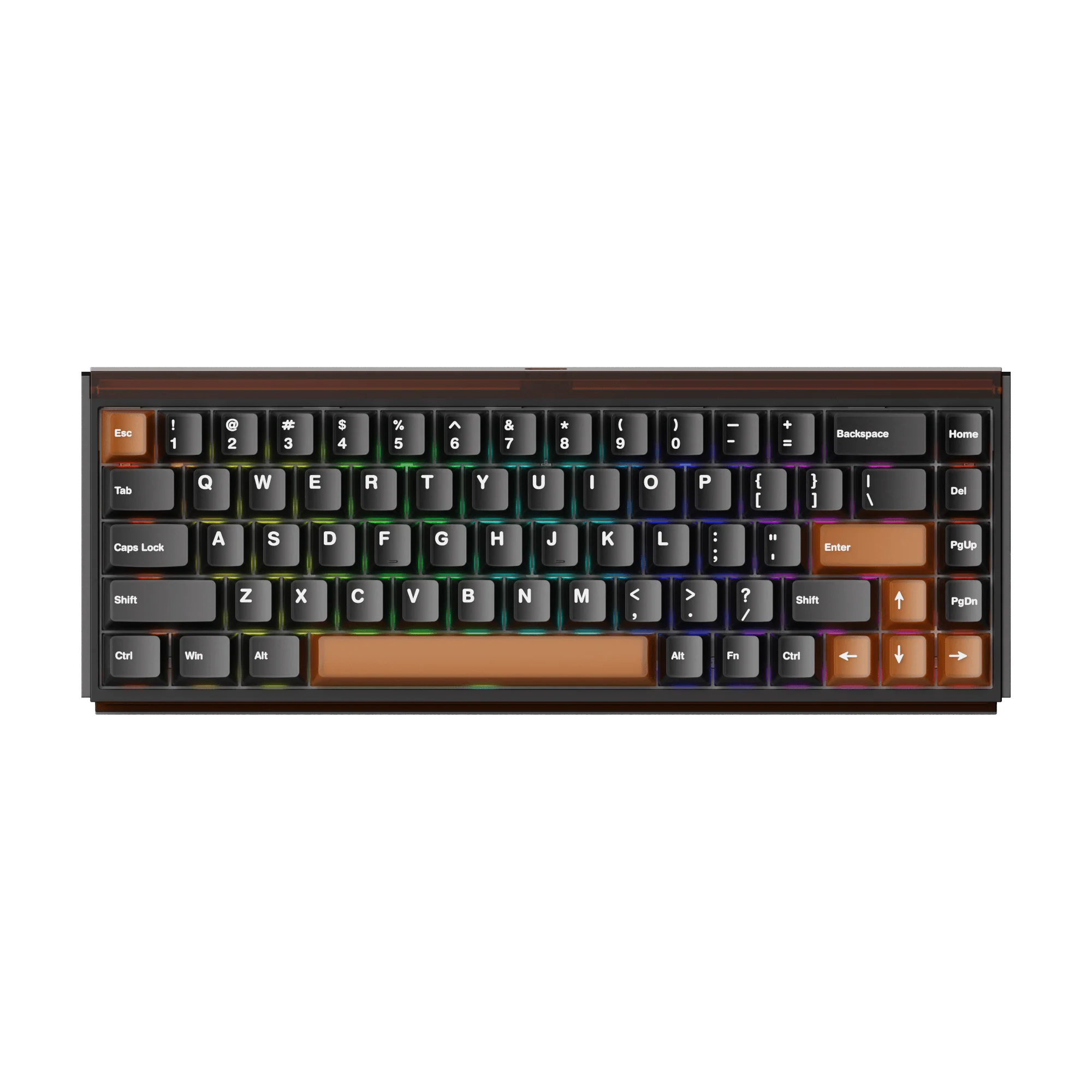

Akko - Ray68 HE Magnetic Hall-Effect Wireless Mechanical Keyboard
